Changlong

1.Adopting combination pump or separate pump, smaller shape and convenient maintenance.

2.Adopting painting-side for common type and stainless steel side for luxurious type .

3.Leading-static and Highly-hang oil pipe.

4..Features fueling as ration , resetting by computer and re-displaying when power cut

5.Big-size aluminium nozzle booter.

6.Submersible pump to be optional.

7.Flow meter features high precision and strong reliability.

8.Excellent electromagnetic compatibility and strongly anti-jamming.

9.Be capable of connecting with central computer in gas station.

10.Conveniently combining and extending function.

11.To update IC card fuel dispenser.

admin/Uploads/2002-1-1-16569.jpgadmin/Uploads/2013-12-28-142022.jpgadmin/Uploads/2013-12-28-142029.jpgadmin/Uploads/2002-1-1-165549.jpgadmin/Uploads/2002-1-1-165539.jpgadmin/Uploads/2002-1-1-165519.jpg

Technical index and parameter:

Ambient temperature -40 °C to +55 °C Power 380V 50Hz(220V to be optional)

Humidity 30% -90% Noise =< 80dB(A class)

Max flow 50L/min or 90L/min Unit price range 0.01~99.99

Accuracy ± 0.3% Single volume range 0.01~9999.99

Repeating error =< 0.15% Accumulative volume range 0.01~99999999999.99

Inlet pressure = >54Kpa Explosion-proof certificate CE011195

Outlet pressure =< 0.3Mpa Explosion-proof sign Exdm 2AT3

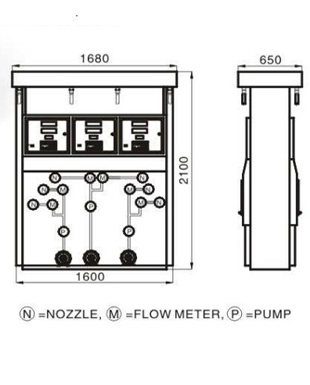

Item

Product Nozzle Display Motor Pump Flow meter Remark

DJY-363A

Six nozzles can fuel at the same time

Remark:Size,color and design of product can be produced accor

ding to customer's requirement.
