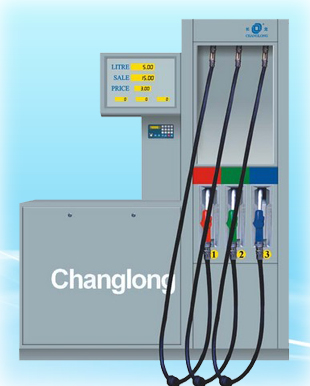

Changlong Tokheim

Feature:
1.Adopting combination pump or separate pump, smaller shape and convenient maintenance.
2.Adopting painting-side for common type and stainless steel side for luxurious type .
3.Leading-static and Highly-hang oil pipe.
4..Features fueling as ration , resetting by computer and re-displaying when power cut
5.Big-size aluminium nozzle booter.
6.Submersible pump to be optional.
7.Flow meter features high precision and strong reliability.
8.Excellent electromagnetic compatibility and strongly anti-jamming.
9.Be capable of connecting with central computer in gas station.
10.Conveniently combining and extending function.
11.To update IC card fuel dispenser.

Technical index and parameter:

Ambient temperature-40 °C to +55 °CPower380V 50Hz(220V to be optional)Humidity30% -90%Noise=< 80dB(A class)Max flow50L/min or 90L/minUnit price range0.01~99.99Accuracy± 0.3%Single volume range0.01~9999.99Repeating error=< 0.15%Accumulative volume range0.01~99999999999.99Inlet pressure= >54KpaExplosion-proof certificateCE011195Outlet pressure=< 0.3MpaExplosion-proof signExdm 2AT3

Item

ProductNozzleDisplayMotorPumpFlow meterRemarkDJY-222A

Two nozzles can fuel at the same timeRemark:Size,color and design of product can be produced according to customer's requirement
