Fuel filter

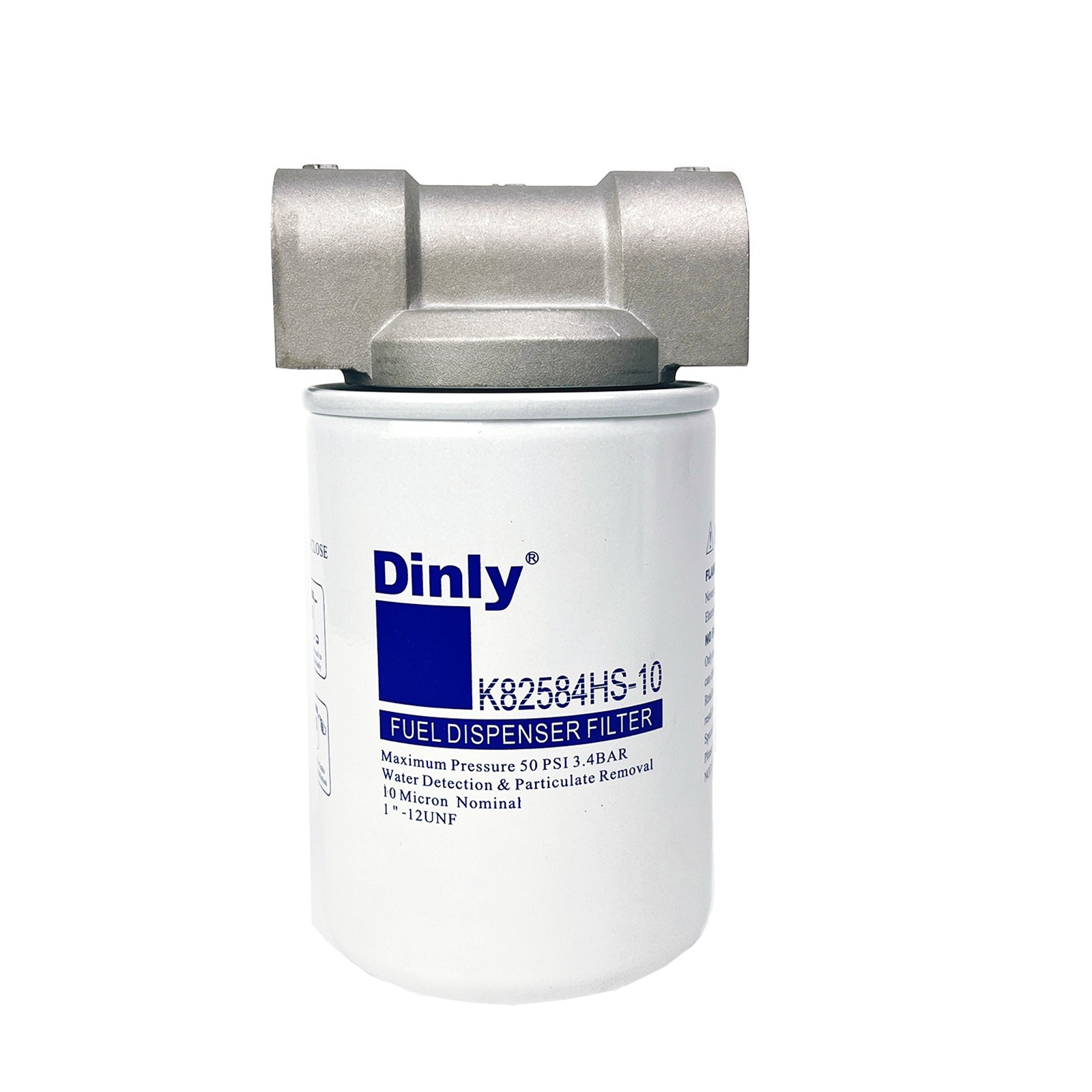

K82584HS-10 Water Sensing and Particulate Removing Fuel Dispenser Filter Fuel with Adapter

Fuel Type: Straight Gasoline, Diesel,ULSD,biodiesel

Function: Remove Particulate & Detect Water

Thread: 1"-12UNF

Filter Size: 3.75" x 5.31"

Petroleum Micron: 10

Send Email

Specifications

1. K82584HS-10 is particulate and water sensing spin-on filters

2. K82584HS-10 filter offers efficient 10 micron (nominal) particulate removal and senses both free and emulsified water in neat gasoline and diesel fuels.

3. K82584HS-10 is designed to sense water, both free and emulsified, and slow flow as an indicator of the presence of water in neat gasoline and diesel fuels. This filter will not sense nor react to water in Ethanol blended gasoline. (Reaction known as phase separation)

4. K82584HS-10 utilizes a 10 micron (nominal) cellulose media to remove particulate from gasolines and diesel fuels including Biodiesel and ULSD (Ultra Low Sulfur Diesel).     Removes particulate 10 microns (nominal) or larger.  This filter utilizes a super absorbent chemical that is laminated to the filter media for water sensing capabilities in neat gasoline and diesel fuels.

5. The maximum flow rate is 25 gpm (94.6 lpm).  Maximum operating pressure is 50 psid(3.4 bar). Collapse pressure is 150 psid (10.3 bar).  Maximum operating temperature is 250°F (139°C).

6. The model K82584HS-10 utilizes a standard 1"-12 UNF mounting thread ref. (3/4" flow) required for most spin-on filter adapters used in Gilbarco, Wayne, Bennet, Tokheim and other major manufacturers’dispensers,as well as with adapters used in the aftermarket.
